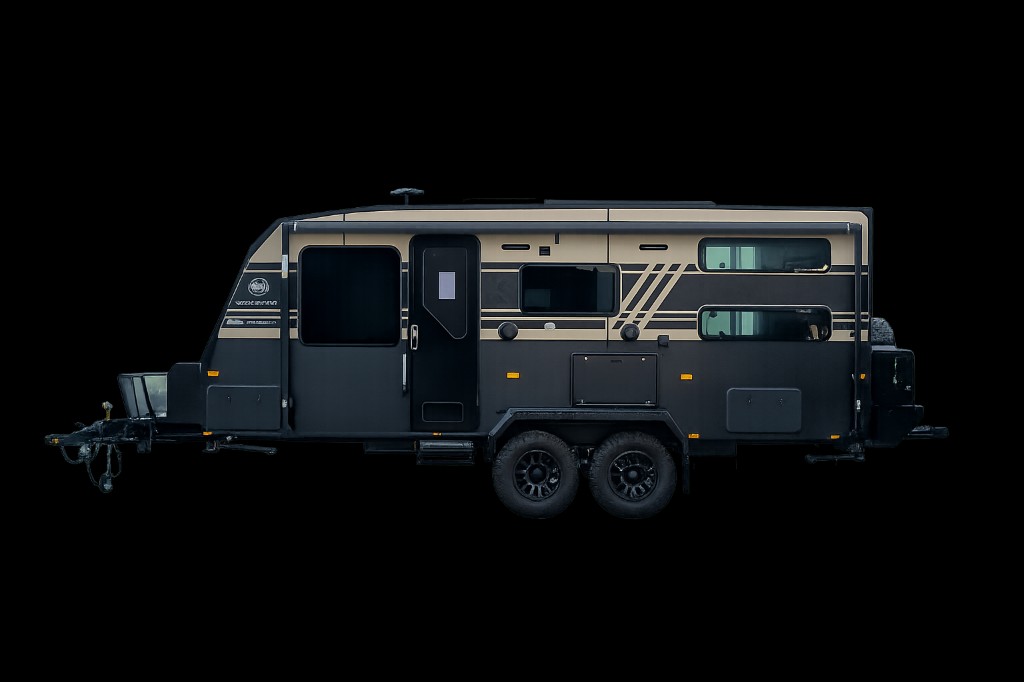

Gemini Escape XT family caravan side profile
Family

Escape XT

Family layouts with a Queen Bed and Two Bunks standard.

Starting from $77,990

Excludes on-road costs and registration. Factory collection from Somerton — delivery available if required. Final price depends on size, specification and options.

From approximately $268/week

Indicative at 6.55% p.a. over 7 years with $0 deposit.
Subject to CreditOne approval.

Check finance
Build Your Escape XT
Lead time 5–6 weeks
Family

Choose Size.

Family layouts with a Queen Bed and Two Bunks standard.

ATM3,200 kg
TareApprox. 2,500 kg
PayloadApprox. 700 kg
SleepsQueen Bed + Two Bunks

Step Inside The Escape XT

Escape XT

Step Inside.

From lounge to ensuite, this is the family layout we build every day — queen bed and two bunks standard, with the fit, storage and finishes families need once the van is loaded and the road opens up.

Specifications

Guide only. Dimensions shown as feet and inches (e.g. 27FT 2 = 27 feet, 2 inches). Confirm final layout, weights and inclusions before ordering. Upgrades & Options Guide

19FT6

Specification 19FT620FT22FT
TareApprox. 2,500 kgApprox. 2,550 kgApprox. 2,650 kg
BallApprox. 180 kgApprox. 185 kgApprox. 190 kg
ATM3,200 kg3,200 kg3,200 kg
PayloadApprox. 700 kgApprox. 650 kgApprox. 550 kg
Overall Length27FT 227FT 829FT 8
Internal Height6FT 66FT 66FT 6
Overall Height10FT10FT10FT
Width8FT 28FT 28FT 2

Chassis & Suspension

Chassis
Silvershine Or Outback Chassis, 2" Riser, Built in Australia
Drawbar
6" Drawbar
A-Frame
Extended A-Frame With Toolbox And External Tap
Axle
Tandem Axle
Suspension
Roller Rocker Suspension — Off-Road Pack Available
Tyres & Rims
235/65 R15 All Terrain Tyres & Rims — Off Road Upgrades Available
Spare Tyre
Rear-Mounted Spare Tyre
Chassis Box
Box Mounted Checkerplate Chassis Box
Tow Ball
Tow Ball Supplied

Body & Exterior

Frame
Meranti Timber Frame, Fully Insulated
Floor
Honeycomb Core Waterproof One-Piece Floor Construction
Cladding
Aluminium Composite Exterior Cladding
Roof
One-Piece Fibreglass Roof
Windows
Double-Glazed Windows With Privacy And Flyscreens
Skylights
2 × LED Skylight Hatches
Tunnel Boot
Tunnel Boot, 560mm × 500mm
Awning
Roll-Out Awning With Centre Support
Picnic Table
External Picnic Table
Grab Handle
Illuminated Entry Grab Handle (LED)
Dust Reduction
Milenco Dust Reduction System With Amplified TV Antenna

Electrical

Solar
3 × 250W Arizon Solar Panels (750W Total)
Solar Controllers
2 × Victron SmartSolar MPPT 100/50 Controllers
Batteries
2 × Arizon 230Ah 12V LiFePO4 In Box Mounted Checkerplate Chassis Box
Inverter
Victron MultiPlus-II 12/3000/120-32 230V Inverter (3000W)
DC-DC & Protection
Victron 50A DC-DC Charger, 65A Smart Battery Protect And 500A SmartShunt
System Monitor
Victron Cerbo GX With Touch 50 Display (7")
Power Outlets
240V Outlet And 12V Socket
Connectivity
RJ45 Data Point — Starlink-Ready
Interior Lighting
LED Lighting Throughout With Integrated USB Points
USB Charging
USB Charging Points Throughout
Exterior Lighting
External LEDs — Entry, Front, Rear And Bug Light
Reverse Camera
Safety Dave Bluetooth Reversing Camera With 6" Monitor

Plumbing

Fresh Water
2 × 95L Fresh Water Tanks
Grey Water
110L Grey Water Tank
Hot Water
28L Gas And Electric Hot Water System
Kitchen Sink
Stainless Kitchen Sink And Tapware
Ensuite
Dedicated Ensuite — Shower, Vanity And Toilet
Toilet
Thetford Plastic Toilet
External Shower
External Shower
Gas Bottles
2 × 9kg Gas Bottles
Gas Bayonet
External Gas Bayonet

Interior & Appliances

Queen Bed
Queen Inner-Spring Bed (6'2" × 5"), Gas-Strut Lift, Storage Below, Samaria Wireless Charging Both Sides
Bunk Beds
Adult-Size Bunk Beds (6'2" × 2'2")
Lounge
L-Shaped Lounge, Soft Vinyl With Hand-Stitched Upholstery
Dining
Telescopic Dining Table — Optional Cushion Converts To Extra Bed
Ventilation
NCE Fans To Master And Bunk Beds With Remote Control
Fridge
NCE 270L 12V Compressor Fridge
Oven & Cooktop
Full-Size Gas Oven And 4-Burner Cooktop (Includes 240V Element)
Microwave
25L Microwave
Air Conditioning
GREE 3.5kW Inverter Air Conditioner/Heater
Washing Machine
Front-Load Washing Machine
Stereo
Bluetooth Stereo With Remote
TV
24" Smart TV, 12V/240V, Remote Included

The specs, photos, videos, prices, and weights shown here reflect how we build today — not a fixed quote. Layouts, inclusions, and pricing can change as options and production evolve. Confirm the final detail with our team before you order. Published weights are a guide only; your van's tare, ATM, payload, and ball weight will depend on your configuration, upgrades, and normal build variation. Gemini Caravans does not accept responsibility for errors on this page or for changes made after it was published.

Buy With Confidence

What Owners Say & What's Asked.

Gokul KaushikEscape XT · Google
★★★★★

They understood the personalisations in my mind and delivered exactly on the day promised. The whole process was smooth and stress free.

Amogh KhadyeFamily caravan · Google
★★★★★

We upgraded batteries, water, suspension and wheels — the team customised everything exactly how we wanted. Buying direct from the manufacturer made it easy.

Read All Google Reviews
What Deposit Is Required To Place an Order?

A 5% deposit secures your build once your order is confirmed.

How Long Does a Build Take?

Most builds run 5–6 weeks after your order is confirmed, depending on size and specification.

What’s Included in the Starting Price?

Starting prices exclude on-road costs and registration. Use the quote builder for an indicative total.

What Tow Vehicle Do I Need?

Escape XT runs 3.2T ATM as standard — higher ATM and an Off-Road Package are available in the quote builder — share your tow vehicle when you enquire and we’ll confirm compatibility.

See Full FAQ

Ready to price your Escape XT?

Share your tow vehicle, preferred size — 19FT6, 20FT or 22FT — and any options you want in the quote builder.

Australian Made Factory Direct RVSA Approved Custom Builds
